Exernal Solutions

Canopy ceilings

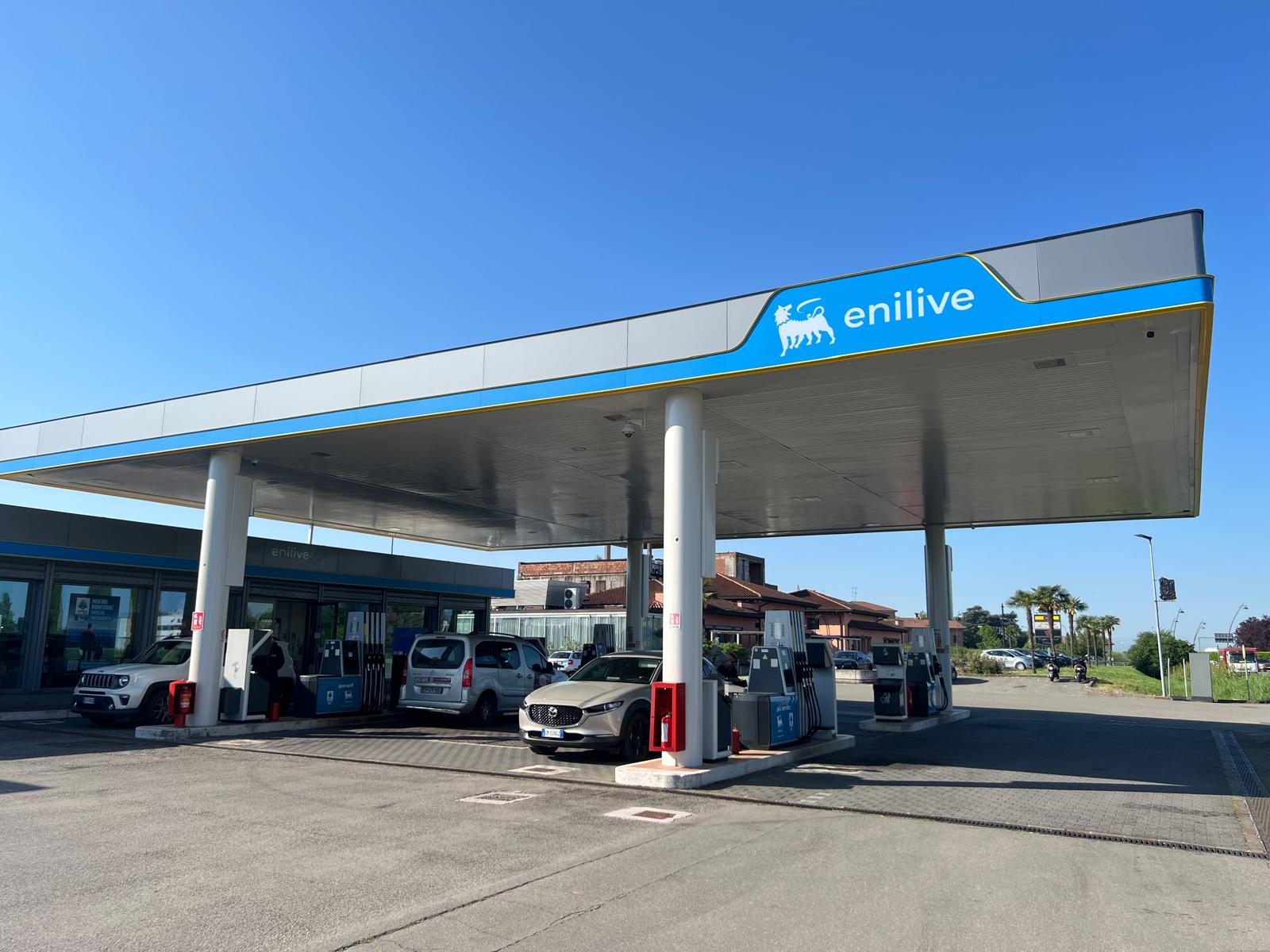

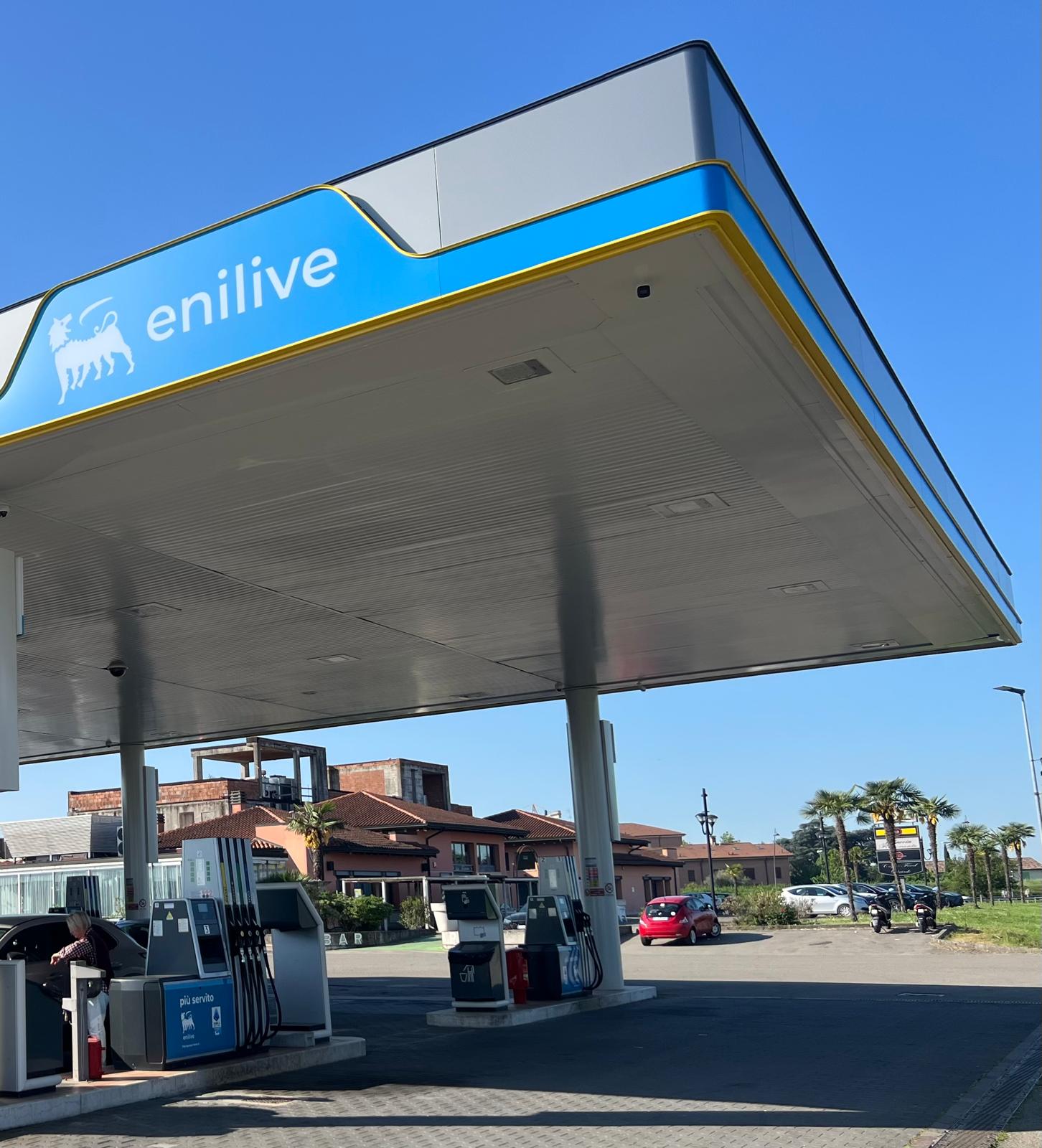

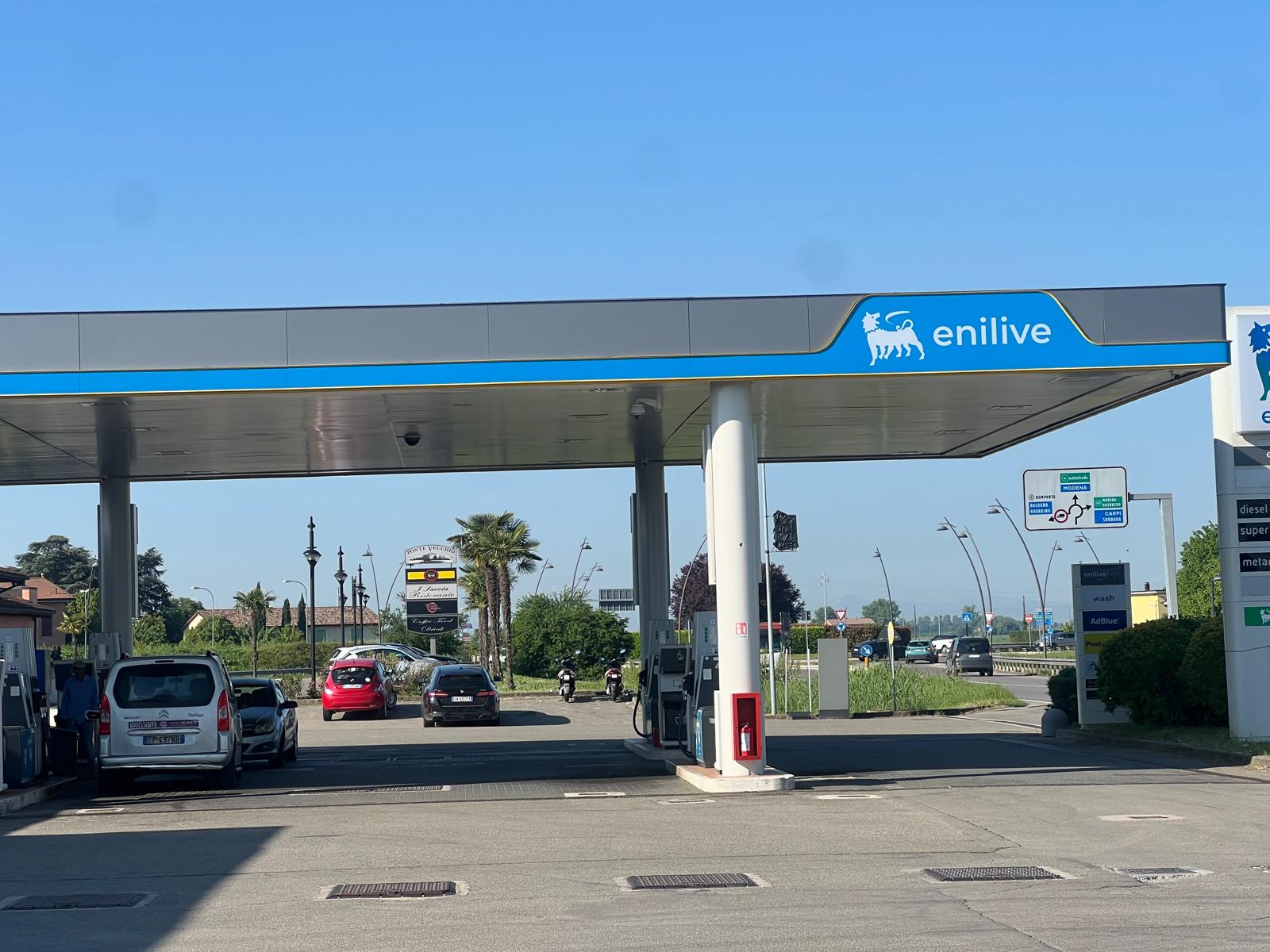

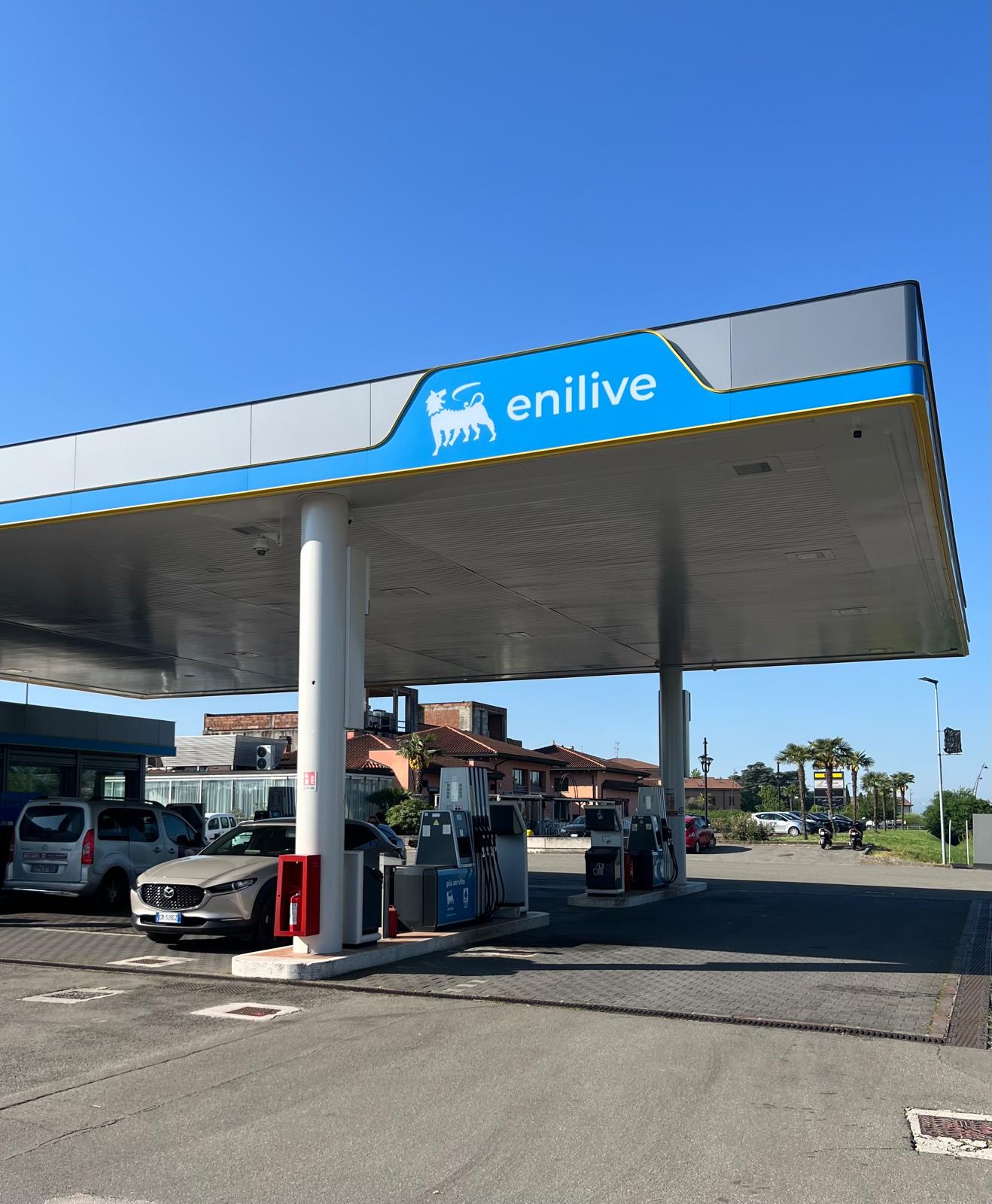

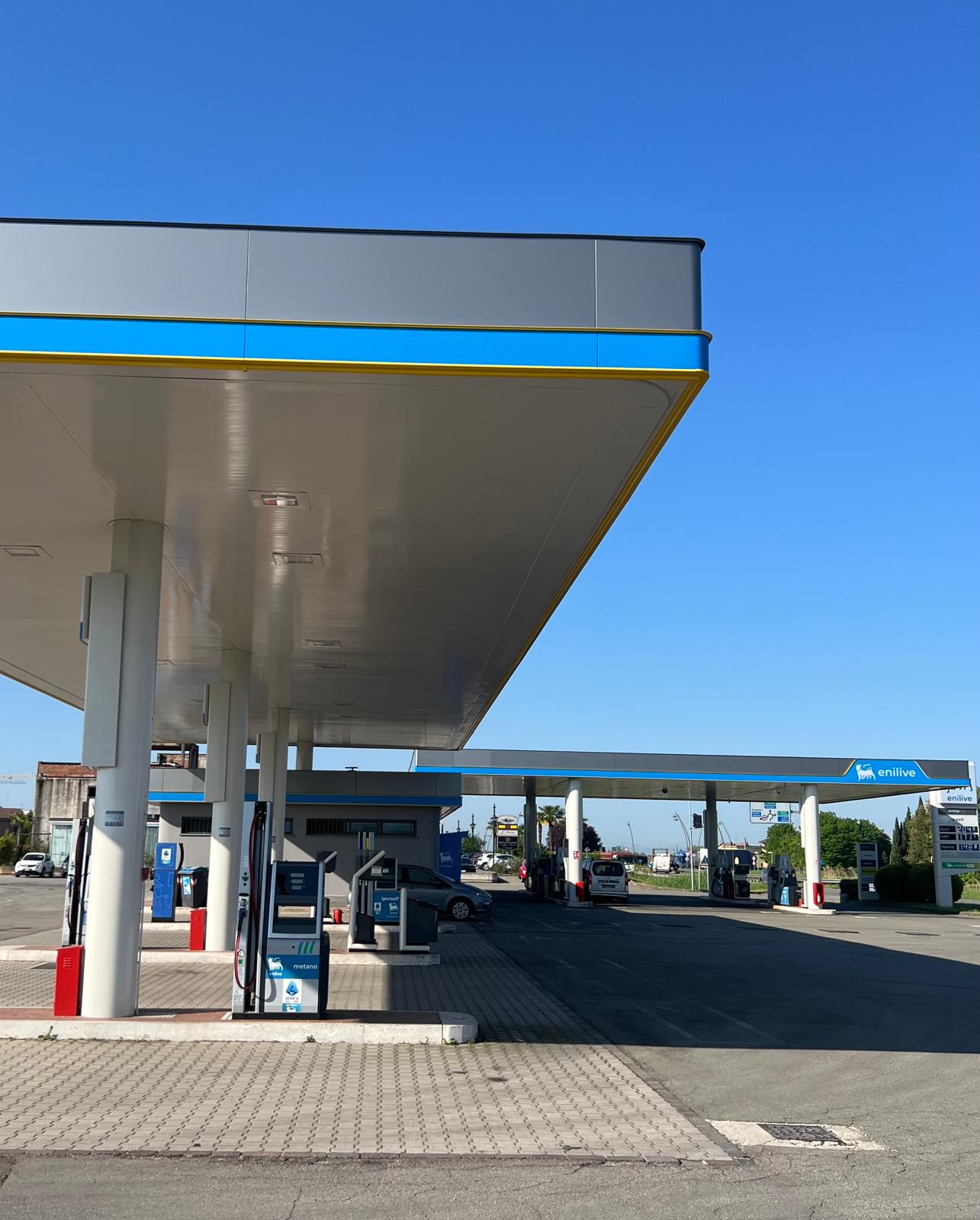

for fuel petrol stations

Windproof ceiling linear panels rounded and squared edges open gap and closed gaps with and without joint for external installations. Canopy ceilings are rollformed pre coated aluminium and steel.

Incombustible Euroclass A1 pitch modules 100 – 150 – 200 – 300 plain.

Panles Typology

Type LT

Technical Specification Guidelines

False suspended ceiling for external application TYPE METALSCREEN LT/100 realized with removable linear panels plainrounded edges width mm.84 height mm.16 pitch mm.100 with mm.16 closed simple or rebated reinforced joint gap. Made of pre painted aluminium Coil Coating alloy 3105-h44-48 thickness mm.0,6 Incombustible Euroclass A1 color and finishes fromRAL colors chart – WOOD LIKE same wood – OXIDAL same brushed anodized – ULTRA MATT high matt surface (pattern, color and finishes follow the choice of the Consultant). NOT allowed sublimation process, pvc coated, powder coated paints, digital photo-imprinting. The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/Z STRONG U section with longitudinal hard torsion-proof made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.700 (follow choice of the Consultant). The linear panels are connected with simple overlap of the strip panel.

Type LT-R

Aluminum Technical Specification Guidelines

False suspended ceiling for external application TYPE METALSCREEN LT/100-150 R realized with removable linear panels plain rounded edges width mm.84 height mm.16 pitch mm.100 with mm.16 closed simple or rebated reinforced joint gap. Made of pre painted aluminium Coil Coating alloy 3105-h44-48 thickness mm.0,6 Incombustible Euroclass A1 color and finishes fromRAL colors chart, WOOD LIKE same wood – OXIDAL same brushed anodized – ULTRA MATT high matt surface (pattern, color and finishes follow the choice of the Consultant). NOT allowed sublimation process, pvc coated, powder coated paints, digital photo-imprinting. The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/Z STRONG U section with longitudinal hard torsion-proof made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.700 (follow choice of the Consultant). The linear panels are connected with simple overlap of the strip panel.

Steel Technical Specification Guidelines

False suspended ceiling for external application TYPE METALSCREEN LT/100-150 R realized with removable reinforced linear panels plain rounded edges width mm.84 height mm.16 pitch mm.100 with mm.16 closed rebated joint gap. Made of pre painted steel Coil Coating NOT allowed powder coated paints thickness mm.0,5 (color follow the choice of the Consultant). NOT allowed powder coated paints. The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/100Z STRONG U section with longitudinal hard torsion-proof reinforce made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.1000. The panels system has perimetrical edge angle profile TYPE METALSCREEN RA L section mm.24X24 pre painted steel same color and finish of the panels are fixed on the walls at the same level. For external application suggested windproof perimetrical wall edge angle TYPE METALSCREEN C30 C section mm.20x30x20 with lock lips. The linear panels are connected with simple overlap of the strip panel.

Type LA

Aluminum Technical Specification Guidelines

False suspended ceiling for external application TYPE METALSCREEN LA realized with removable linear panels plain shaped edges width mm.90-140-190-290 height mm.19 pitch mm.100-150-200-300 with mm.10 closed joint gap. Made of pre painted aluminium Coil Coating alloy 3105-h44-48 thickness mm.0,6 Incombustible Euroclass A1 color and finishes from RAL colors chart – WOOD LIKE same wood – OXIDAL same brushed anodized – ULTRA MATT high matt surface (pitch, color and finishes follow the choice of the Consultant). NOT allowed sublimation process, pvc coated, powder coated paints, digital photo-imprinting. The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/100Z STRONG U section with longitudinal hard torsion-proof reinforce or Omega section Type 44-01 made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.700 (follow choice of the Consultant). The linear panels are connected head to head.

Steel Technical Specification Guidelines

False suspended ceiling for external application TYPE METALSCREEN LA realized with removable linear panels plainshaped edges width mm.90-140-190-290 height mm.19 pitch mm.100-150-200-300 with mm.10 closed joint gap. Made of pre painted steel Coil Coated NOT allowed powder coated paints. Thickness mm.0,5 Incombustible Euroclass A1 (pitch, color follow the choice of the Consultant). The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/100Z STRONG U section with longitudinal hard torsion-proof reinforce or Omega section Type METALSCREEN 44-01 made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.1000. The panels system has perimetrical edge angle profile TYPE METALSCREEN RA L section mm..24X24 pre painted steel same color and finish of the panels are fixed on the walls at the same level. For external application suggested windproof perimetrical wall edge angle TYPE METALSCREEN C30 PUSH DOWN C section mm.20x30x20 with lock lips. The linear panels are connected head to head.

Type LA-RIV

Aluminum Technical Specification Guidelines

False suspended ceiling wind proof for external application TYPE METALSCREEN LA-RIV realized with linear panels plainshaped edges width mm.100-150-200-300 height mm.19 pitch mm.100-150-200-300 closed without joint gap. Made of pre painted aluminium Coil Coating alloy 3105-h44-48 thickness mm.0,6 Incombustible Euroclass A1 color and finishes from RAL colors chart – WOOD LIKE same wood – OXIDAL same brushed anodized – ULTRA MATT high matt surface (pitch, color and finishes follow the choice of the Consultant). NOT allowed sublimation process, pvc covers, powder coated paints, digital false photo-imprinting. The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/100Z STRONG U section with longitudinal hard torsion-proof reinforce or Omega section Type METALSCREEN 44-01 made of hot dipped galvanized steel reinforced thickness mm.0,7 perpendicular suspended at maximum mm.700. (Follow choice of the Consultant) The panels system has perimetrical edge angle profile TYPE METALSCREEN RA L section mm..24X24 pre painted aluminium same color and finish of the panels are fixed on the walls at the same level. The linear panels are connected head to head.

Steel Technical Specification Guidelines

False suspended wind proof ceiling for external application TYPE METALSCREEN LA-RIVrealized with linear panels plainshaped edgeswidth mm.100-150-200-300 height mm.19 pitch mm.100-150-200-300 closed without joint gap. Made of pre painted steel Coil Coating alloy 3105-h44-48 thickness mm.0,5 Incombustible Euroclass A1 (pitch, color, follow the choice of the Consultant).The panels are suspended with a simple clip-on the main supporting carrier TYPE METALSCREEN 63/100Z STRONG U section with longitudinal hard torsion-proof reinforce or Omega section Type METALSCREEN 44-01 made of hot dipped galvanized steel thickness mm.0,7 perpendicular suspended at maximum mm.1000. The panels system has perimetrical edge angle profile TYPE METALSCREEN RAL section mm.24X24 pre painted aluminium same color and finish of the panels are fixed on the walls at the same level. For external application suggested windproof perimetrical wall edge angle TYPE METALSCREEN C30 PUSH DOWN C section mm.20x30x20 with lock lips. The linear panels are connected head to head.

Certifications

Aluminum linear panles False Ceilings and Claddings

Steel linear panels for false ceilings

Steel support systems for linear panels

False ceilings, claddings and structures saltiness corrosion resistance

Test report for saltiness fog

Sunscreen Panels for external wind resistance

External Panles wind resistance ETAG 034-1-2012
